Hydrocyclone

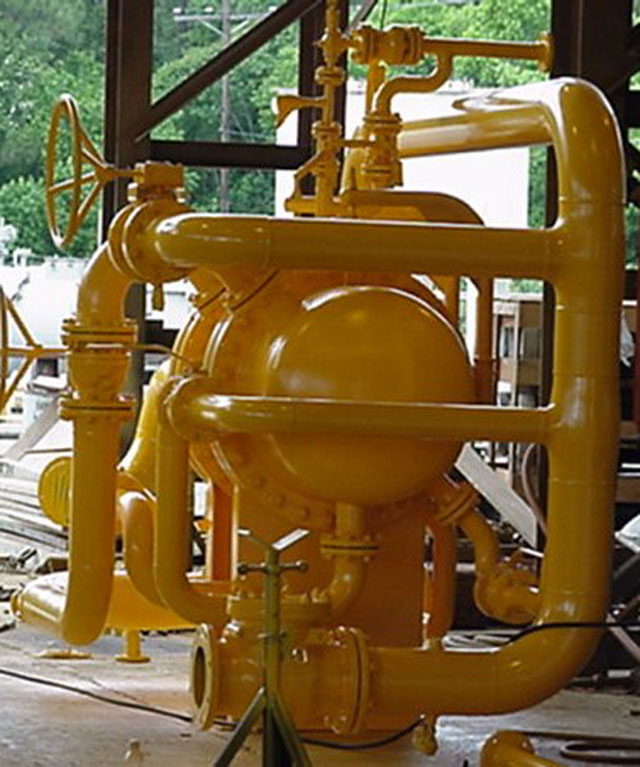

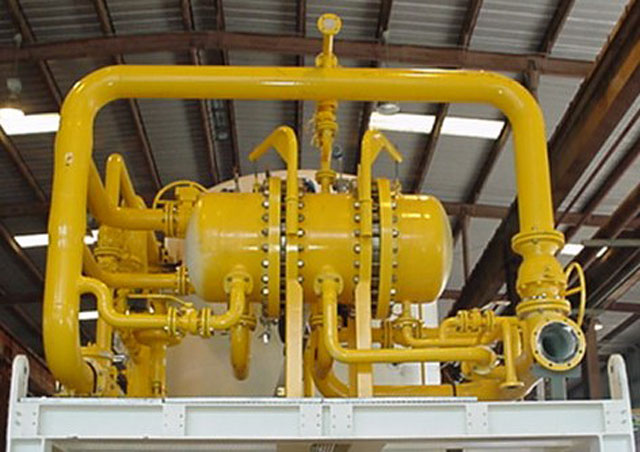

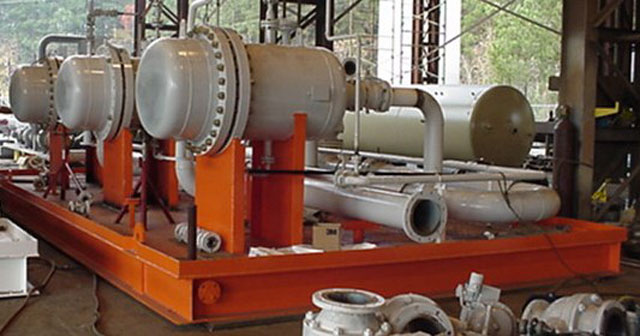

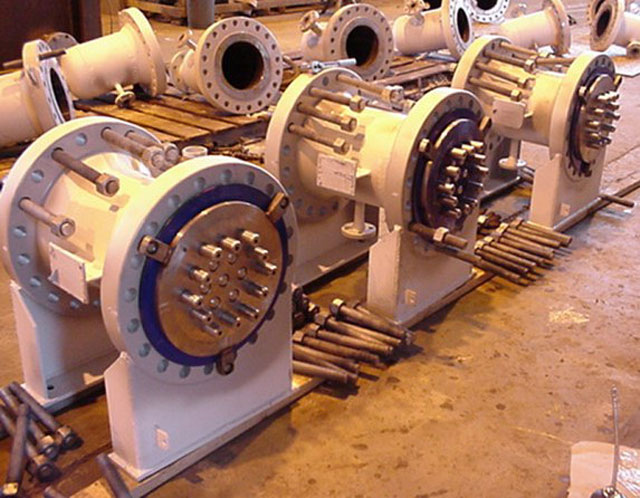

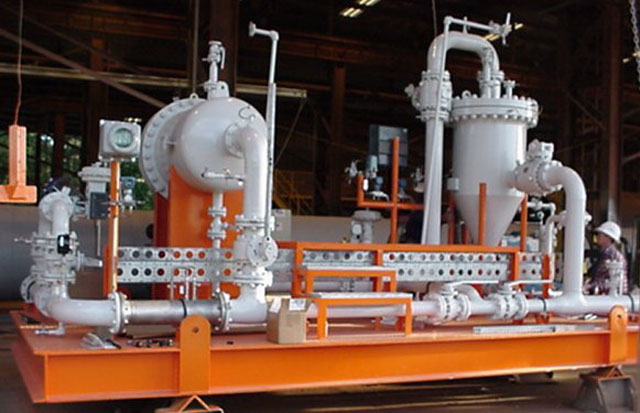

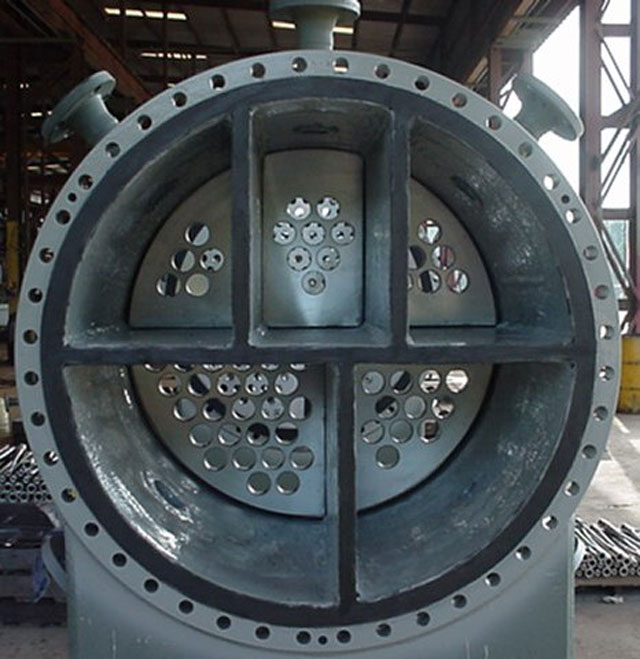

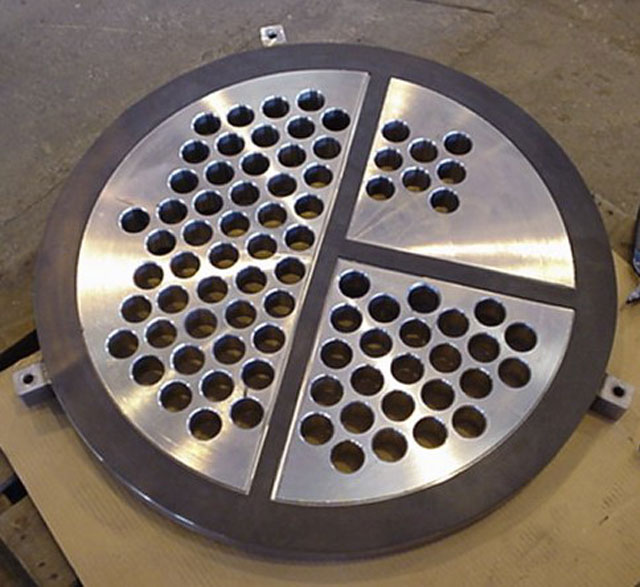

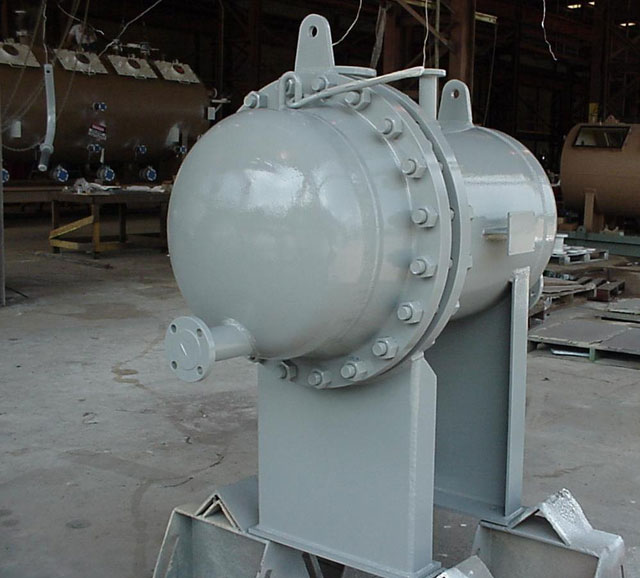

ESI's State Of The Art DeOiling Hydrocyclone

• Tests at a major University show that ESI's new Spiral Ramp LQ-R's design can improve the efficiency of hydrocyclones by as much as 50% (see graph).

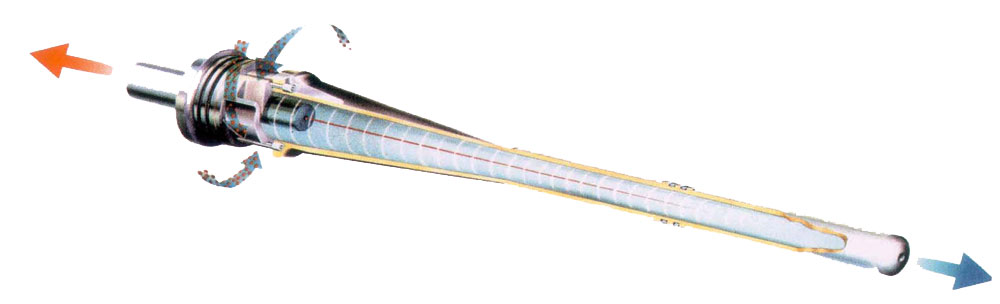

• Converts pressure energy to internal centrifugal energy
• Geometry creates vortex to enhance gravity
• Oil droplets coalesce in central code (> 5-20 microns)
• Insensitive to motion or surges No moving parts
• Light Weight
• Unaffected by Motion
• No chemicals or power (if high enough pressure)
• Small oily reject stream (2% of inlet flow)
• Compact Design
