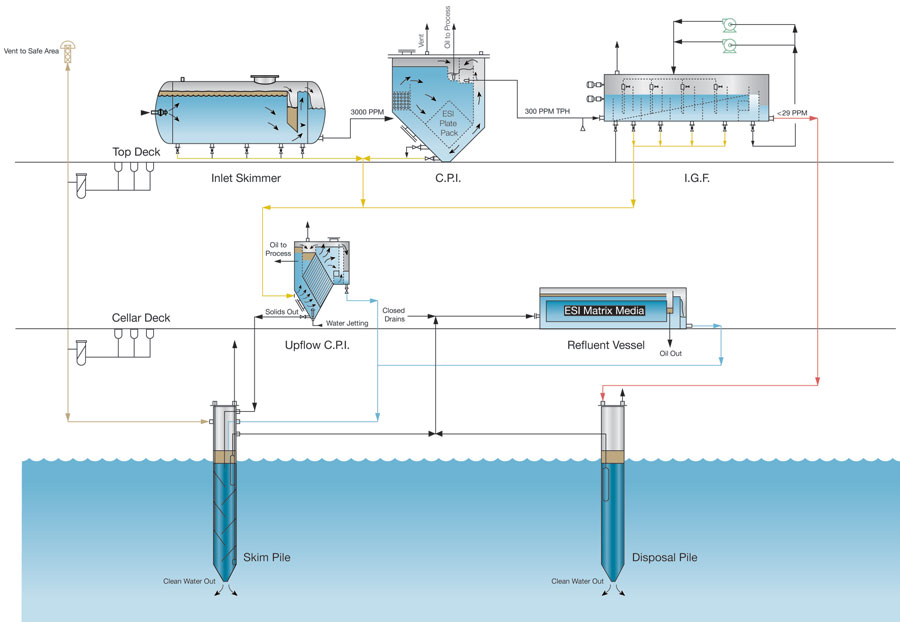

OUR PROCESS


INLET SKIMMER
A 3-phase separator for large particles (150µm) designed to provide constant flow for downstream equipment.

CORRUGATED PLATE INTERCEPTOR (CPI)
45° Down-flow Parallel Plate Separator designed and sized to remove oil and sand from wastewater.

QUADAIR FLOTATION UNIT
A four-cell flotation system designed to float out emulsified oils and suspend solids by inducing gas bubbles.

VERTIFLOAT
A single-cell vertical Compact Flotation Unit designed to purify produced water using 2 stages of oil droplet coalescence along with a single flotation compartment.

UPFLOW CPI
60° Up-flow Parallel Plate Separator designed and sized to remove and clean solids from wastewater.

DECK DRAINS AND SEALS
Used to seal drains and drain headers, preventing toxic and flammable gases from venting in protected areas.

HYDROCYCLONE
ESI's Patented Spiral Ramp LQ-R hydrocyclone incorporates a unique spiral ramp entry significantly improving efficiency.

SKIM PILE
An internally plated vertical sump caisson designed to remove free oil (>50 m) from Open and Closed Drains.

FLOTATION PILE
A patented sump caisson utilizing baffles, oil risers and flotation offering the best separation technologies in one offshore caisson.

DISPOSAL PILE
An un-plated vertical sump caisson designed to dispose of Produced Water and contain upstream equipment upsets.
