Liquid Seals
LIQUID SEALS

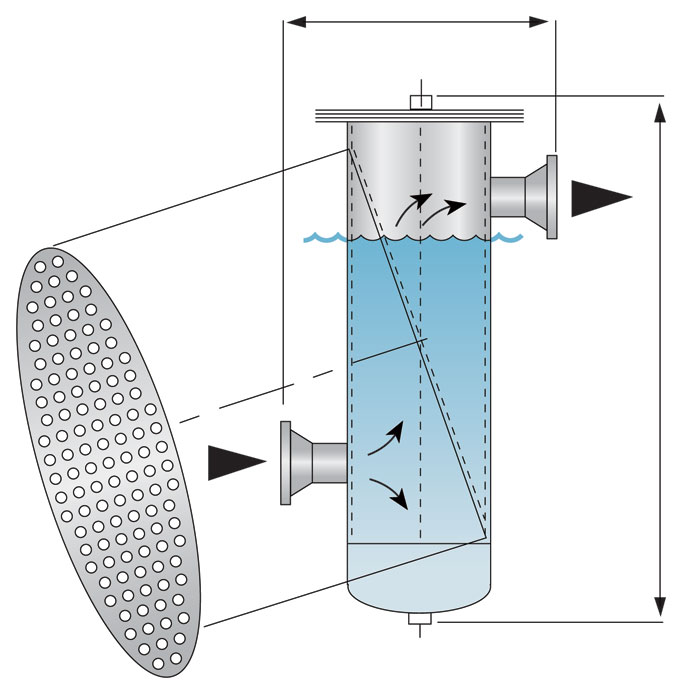

DRAIN HEADER LIQUID SEAL W/STRAINER
| MODEL NUMBER | "H" VESSEL HEIGHT (in) |
"L" VESSEL LENGTH (in) |
"W" VESSEL WIDTH (in) |
INLET/OUTLET SIZES (in) |
| DHLS-S-3 | 47.625 | 24.75 | 18.75 | 3 |
| DHLS-S-4 | 48.625 | 24.75 | 18.75 | 4 |
| DHLS-S-6 | 50.625 | 24.75 | 18.75 | 6 |
| DHLS-S-8 | 54.625 | 30 | 24 | 8 |
| DHLS-S-10 | 56.6255 | 30 | 24 | 10 |
| DHLS-S-12 | 58.625 | 30 | 24 | 12 |
| DHLS-S-14 | 69.125 | 40 | 30 | 14 |
| DHLS-S-16 | 71.125 | 40 | 30 | 16 |

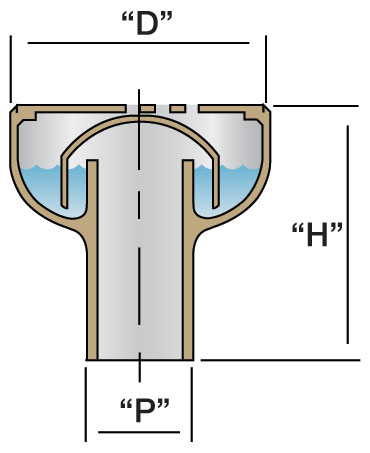

ROUND DECK DRAIN W/LIQUID SEAL
| MODEL NUMBER | "D" VESSEL HEIGHT (in) |
"P" VESSEL LENGTH (in) |
"H" VESSEL WIDTH (in) |
DRY WEIGHT (lbs) |
| RDD-S-10 | 10 | 4,500 | 12 | 46 |
| RDD-S-12 | 12 | 6,625 | 12 | 70 |
| RDD-S-14 | 14 | 8,625 | 12 | 100 |

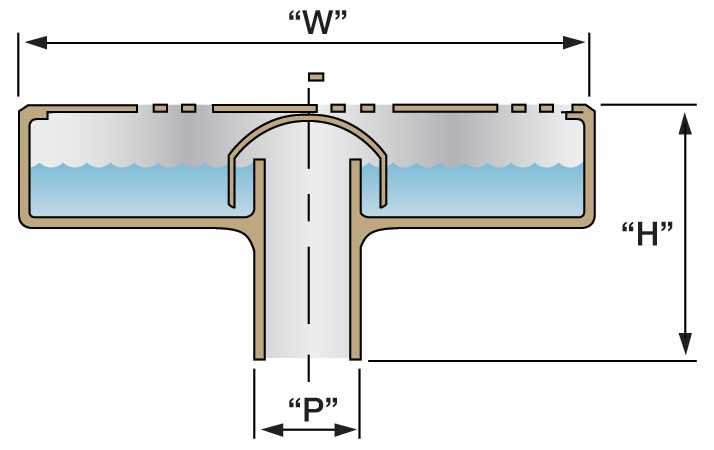

SQUARE DECK DRAIN W/LIQUID SEAL
| MODEL NUMBER | "W" VESSEL HEIGHT (in) |
"P" VESSEL LENGTH (in) |
"H" VESSEL WIDTH (in) |
DRY WEIGHT (lbs) |
| SDD-10 | 12 | 45,00 | 12 | 90 |
| SDD-S-12 | 18 | 6,625 | 12 | 120 |
| SDD-S-14 | 24 | 8,625 | 12 | 150 |
